Will a Luxury Sprinter Fit? Garage, Parking and Clearance Guide

A luxury Sprinter may be easy to drive, yet too tall for your garage, too long for a favorite parking structure or too wide for a narrow side gate. The important number is not just the factory roof height. It is the maximum real-world envelope of the completed van—including rooftop equipment, mirrors, hitch accessories and any suspension or tire changes.

This guide shows buyers how to measure first and avoid an expensive fit problem.

Start with the factory dimensions—but do not stop there

For the 2026 passenger van, the official Mercedes-Benz Sprinter specifications list these representative exterior dimensions:

These are Mercedes figures for the factory passenger van, not guaranteed dimensions for every completed luxury conversion. Model year, drivetrain, tires and build configuration matter. Review the exact vehicle and its model-year materials through the official Mercedes-Benz owner-manual library.

A converted van may add:

• rooftop air conditioning, vents, antennas, solar hardware or satellite equipment;
• powered running boards or fixed steps;
• an awning case;
• larger wheels, tires or altered suspension;
• a rear hitch, bike rack, spare-tire carrier or cargo box;
• body trim that changes the practical width or approach angle.

That is why an online listing is the start of your check, not the answer.

Measure the van’s true envelope

Ask the seller to measure the actual van on level ground in its normal travel configuration. If you inspect it in person, bring a 25-foot tape measure and a straightedge or laser level.

Record four numbers:

1. Maximum height: Measure the highest fixed point, often a rooftop A/C shroud or antenna base—not merely the metal roof.
2. Overall length: Include any fixed rear equipment. Measure removable hitch accessories separately in both installed and removed configurations.
3. Maximum width: Include the mirrors in their normal driving position, then measure again with power-folding mirrors folded.
4. Ground and breakover clearance: Note low running boards, plumbing, steps and rear accessories that may contact a steep driveway.

Load can change ride height. For a realistic check, measure with normal fuel, typical passengers or cargo, and the suspension set to the mode you will actually use. Our luxury Sprinter air-suspension guide explains why a comfort system should not be treated as permission to ignore the certified weight ratings.

Measure the opening, not just the room

A garage can be physically large enough inside but still have a smaller entrance. Check:

• the lowest point of the raised garage door;
• door tracks, openers, lights, sprinklers and beams;
• the narrowest point between trim, columns or shelving;
• the distance available for a straight approach;
• the driveway slope and the transition at the threshold;
• the space needed to open rear doors or deploy a step.

For height, measure at several points across the opening. A sloped driveway can raise the front or rear corner of a long van relative to the header. For width, remember that a driver needs room to correct the steering angle; a mathematical fit with an inch on each side is not a usable fit.

Use a margin, not a perfect match

A van measuring 113 inches high should not be treated as compatible with an opening measured at exactly 113 inches. Measurement error, tire pressure, load, snow, resurfacing and suspension movement all consume clearance.

A practical editorial rule is to seek several inches of verified margin on height and more generous operating room on width and length. The right margin depends on the approach, surface and driver. If the fit is close, arrange a supervised test with a spotter before purchase. Do not rely on a dashboard height note or memory.

Parking garages require a separate plan

Posted clearance is the facility’s limit, not a promise that every internal ramp, pipe or sign offers extra room. A high-roof Sprinter—and many standard-roof luxury conversions with rooftop equipment—will not fit ordinary passenger-car garages.

Before a trip:

• check the operator’s official clearance information;
• identify outdoor or oversized-vehicle parking;
• inspect entrances for low signs and hanging bars;
• do not follow another tall vehicle as proof of clearance;
• keep the van’s verified height visible near the driver.

Length matters too. A 170-inch-wheelbase van is roughly 40 inches longer than the 144-inch configuration in the current Mercedes table. That affects stall overhang, ramp turns and the ability to exit a tight aisle. Compare the ownership tradeoffs in our 144 vs. 170 luxury Sprinter guide.

Homeowners should check more than the garage

If the van will be stored at home, confirm:

• HOA or municipal rules for oversized, commercial-looking or RV-classified vehicles;
• driveway width, slope and sidewalk overhang;
• tree branches, eaves and utility lines;
• gate width and the swing path;
• whether street parking rules change by vehicle length, registration or overnight use.

Rules vary by jurisdiction and can change. Contact the city, county or HOA directly and describe the exact registration class and dimensions; do not rely only on a neighbor’s experience.

A five-minute pre-purchase fit sheet

Before signing, put these items on one page:

Photograph the tape at the highest point and the garage opening. Save the date, tire size, suspension setting and load condition. If a seller or installer supplies dimensions, ask whether they are measured or estimated.

Bottom line

Choose the layout you want only after confirming where the vehicle will live and travel. Factory specifications help narrow the field, but the completed van must be measured as it sits. If you are comparing candidates, browse current luxury vans for sale and ask for an actual height, length and equipment list before planning a garage fit.

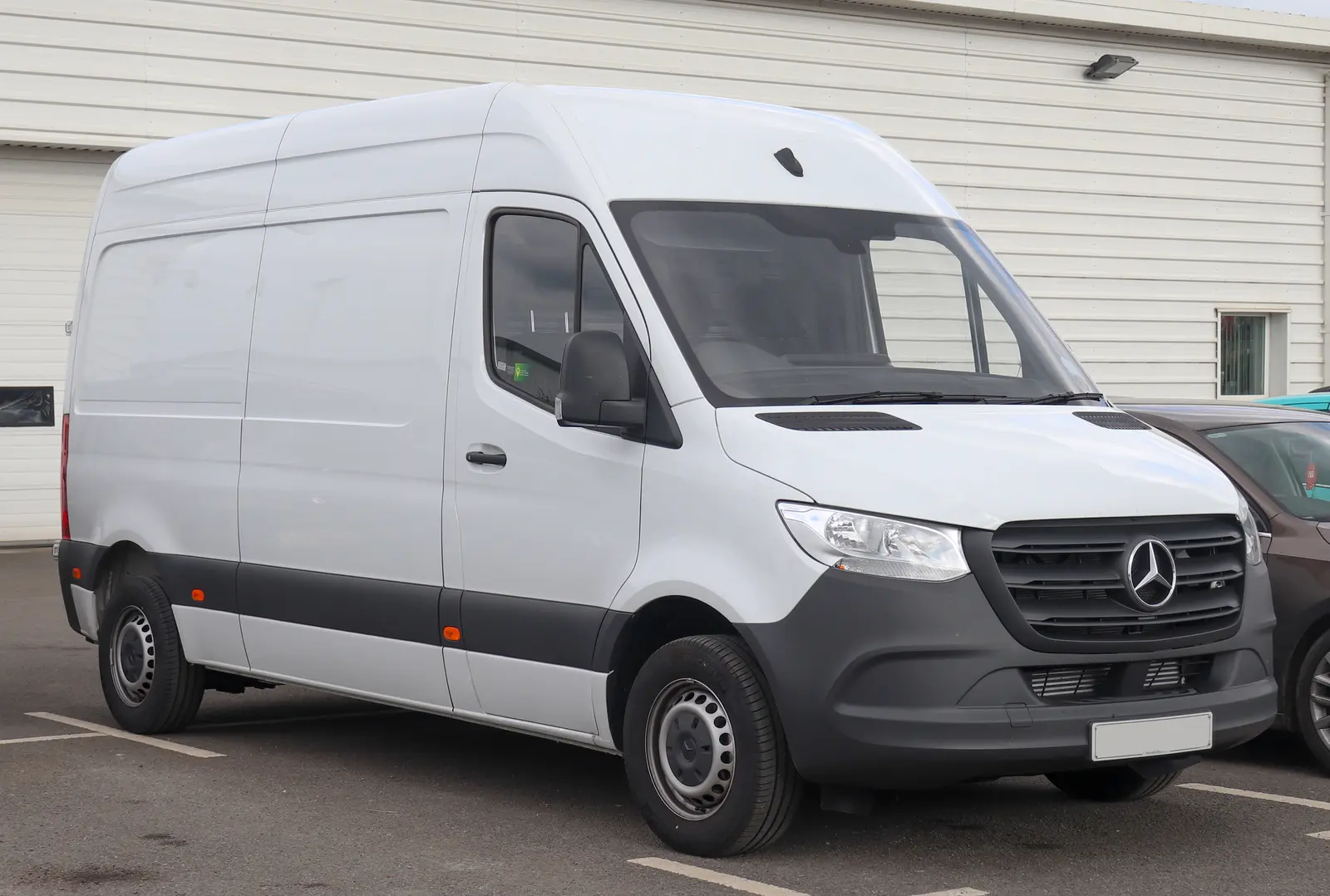

Hero image: Vauxford via Wikimedia Commons, licensed under CC BY-SA 4.0. The pictured factory van is illustrative and is not represented as a specific luxury conversion.
